Overview
The converter is of the type STECA SOLARIX PRS 3030.
The regulator converts the incoming DC (~30V) from the photovoltaic panels (PV) to a system voltage of 24V, which goes to the batteries (BA) and the chargers (CH). If the PV system is not active, power is taken directly from the batteries to the chargers.

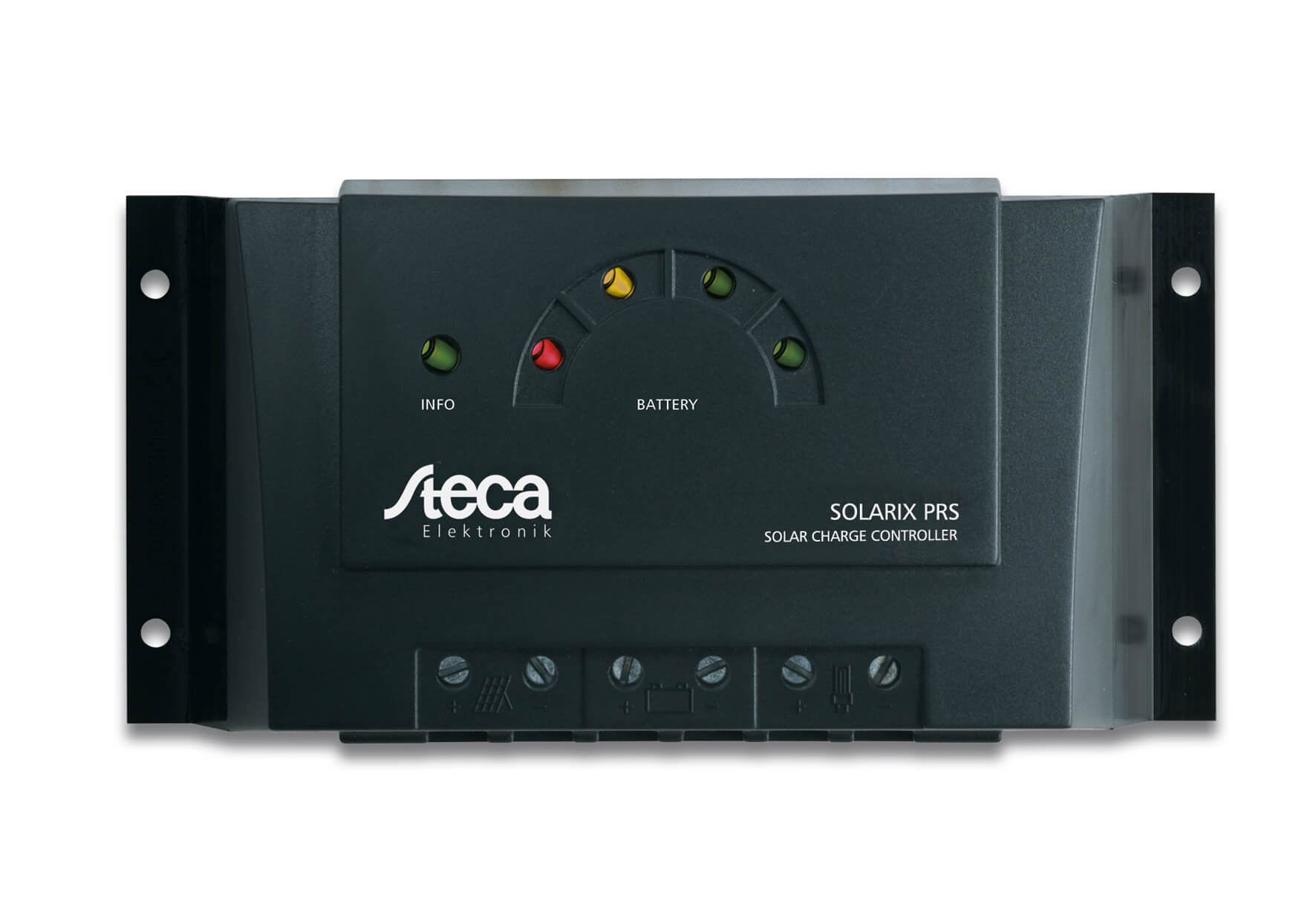

Product
Geography

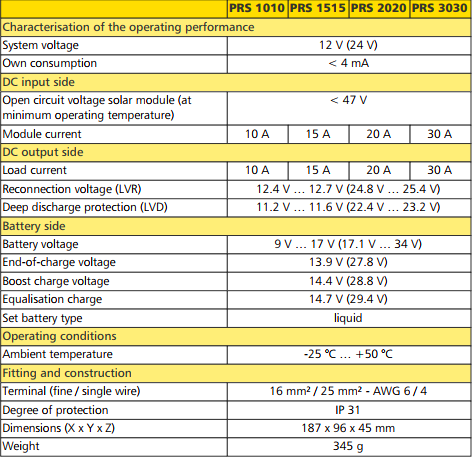

Technical specification
Taken from http://www.steca.com/index.php?Steca-Solarix-PRS-en

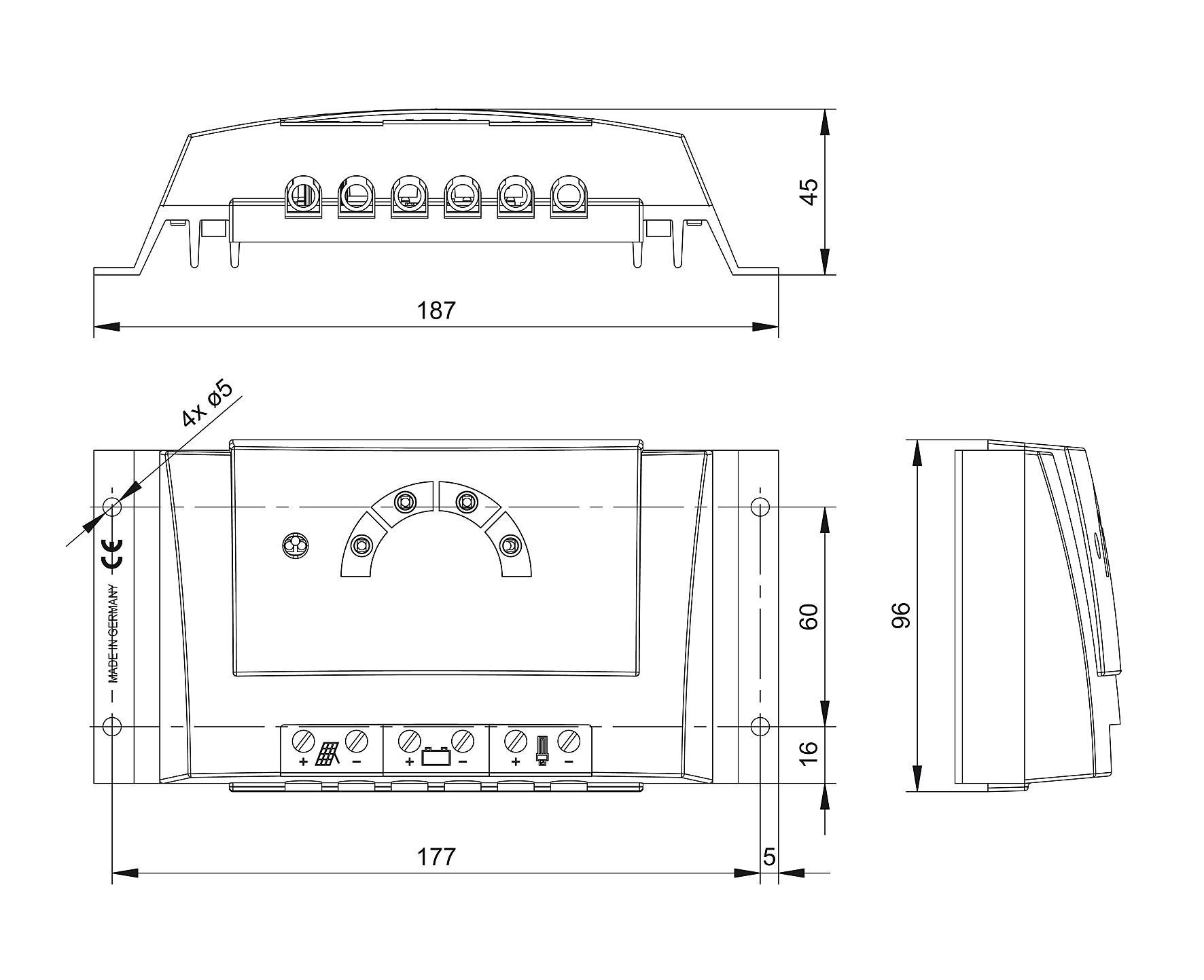

Drawing
